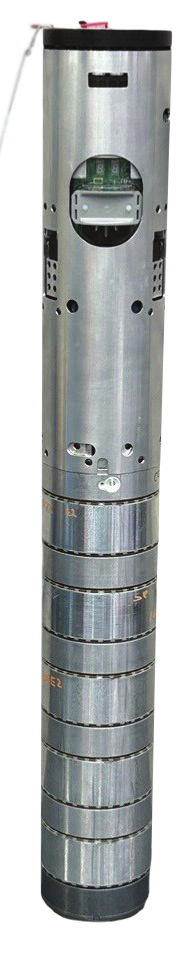

The SSQ‑62F is a sixth‑generation Directional Command Active Sonobuoy System in a NATO A‑size buoy, used to detect and localize submarines. It provides both range and bearing to the target for accurate position fixing.
Like the SSQ‑62E, the 62F supports any of the four acoustic frequencies selected through Electronic Function Select, and Command Function Select lets the operator change the buoy’s mode of operation after it has been deployed. Added GPS location capability transmits the messages requested by CFS on a subcarrier.
KEY FEATURES
Weight
Sonobuoy Launch Container
17.46 kg (38.5 lbs)
LAU-126/A
RF Command Receiver
RF Transmitter Power Output
RF Transmitter Operating Frequency
RF Transmitter Frequency Stability
Sonic Frequencies (any selectable from a single AN/SSQ-62F)
Operating Life
Operating Depth
Transducer Array
Shelf Life
Selections (Deep Depth and RF Channel)
Selections (Depth, Acoustic Channel, GPS, RF Channel)
UHF – Single Channel
1 W minimum
97 Channel Selectable
± 25 kHz
A: 6.5 kHz, B: 7.5 kHz, C: 8.5 kHz, D: 9.5 kHz
1 hour minimum
15-460 meters (50-1500 ft)
Piezoelectric Ceramic, Omni directional, Transmit/Directional Receive
5 years in sealed container
Electronic Function Select
Command Function Select
