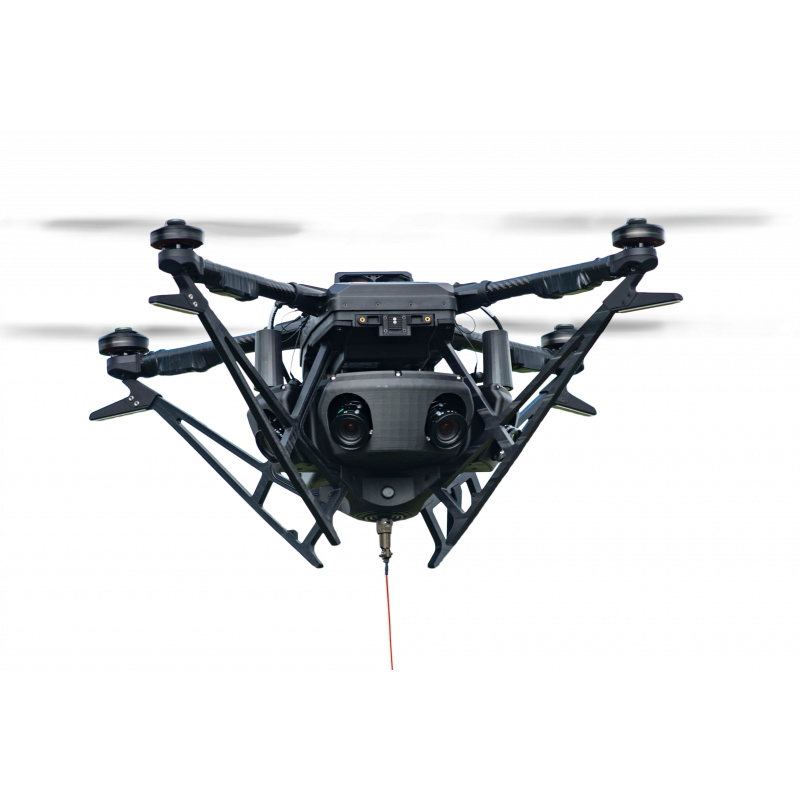

A miniaturized version of the Kestrel aerostat-based system, MicroKestrel 360 delivers wide-area motion imagery (WAMI) from tethered Group 1 unmanned aircraft systems (UAS). It provides full 360-degree coverage as a single system, rather than pairing two 180-degree pods.
Available in short- and long-range versions, MicroKestrel 360 supports the user with uninterrupted live and recorded imagery. Powerful and portable, it delivers situational awareness at a moment’s notice.
FEATURES
READY FOR EVERY MISSION
Sensor Size
Sensor Weight
Sensor Power
Sensor Voltage
12 in D x 4 in H (30.5 cm x 10 cm)
< 12 lbs (5.4 kg)
< 100 W
12 VDC
Operational Altitude
MicroKestrel-L Area of Coverage
MicroKestrel-S Area of Coverage
Angular Coverage
Rendered Image Stability
Digital Zoom
Refresh Rate
Viewer Windows
Onboard Archive Length
Imagery Transmission
Internal Processing
200 ft – 400 ft (61 m – 122 m) AGL
2.5 km radius, 9.8 sq km at 200 ft (61 m) AGL
300 m radius, 0.14 sq km at 200 ft (61 m) AGL
360 degrees
< 1 pixel
Yes
5 Hz
5 real-time plus 5 forensic on optional ground station
Up to 4 hours
Control centers, mobile devices
Compact embedded real-time processing includes georegistration, stabilization, and mosaic stitching, with DVR-like streaming of stored imagery
